New Build Estate project site in Bradford

New Build Estate – Bradford

16 Detached Dwellings

Overview

Rapid Piling delivered the full piling and reinforced concrete ground beam package for Batty Developments on a new build residential estate in Bradford. The scheme consisted of 16 detached dwellings and formed part of a wider £6,000,000 development.

The works included 220mm driven piles, reinforced concrete ground beams, shuttering and concrete installation. Rapid Piling also handled the structural engineer details, helping provide a coordinated package from design through to site delivery.

The piling package value was approximately £150,000 and the works were completed within an 8-week programme.

Key Facts

LocationBradford
ClientBatty Developments
SectorResidential New Build
Project TypeNew build estate
Development Size16 detached dwellings
Total Project Value£6,000,000
Piling Package Value£150,000
ProgrammeCompleted in 8 weeks
Works220mm driven piles, reinforced concrete ground beams, shuttering and concrete
Structural Engineer DetailsHandled by Rapid Piling

1. Site Setup & Setting Out

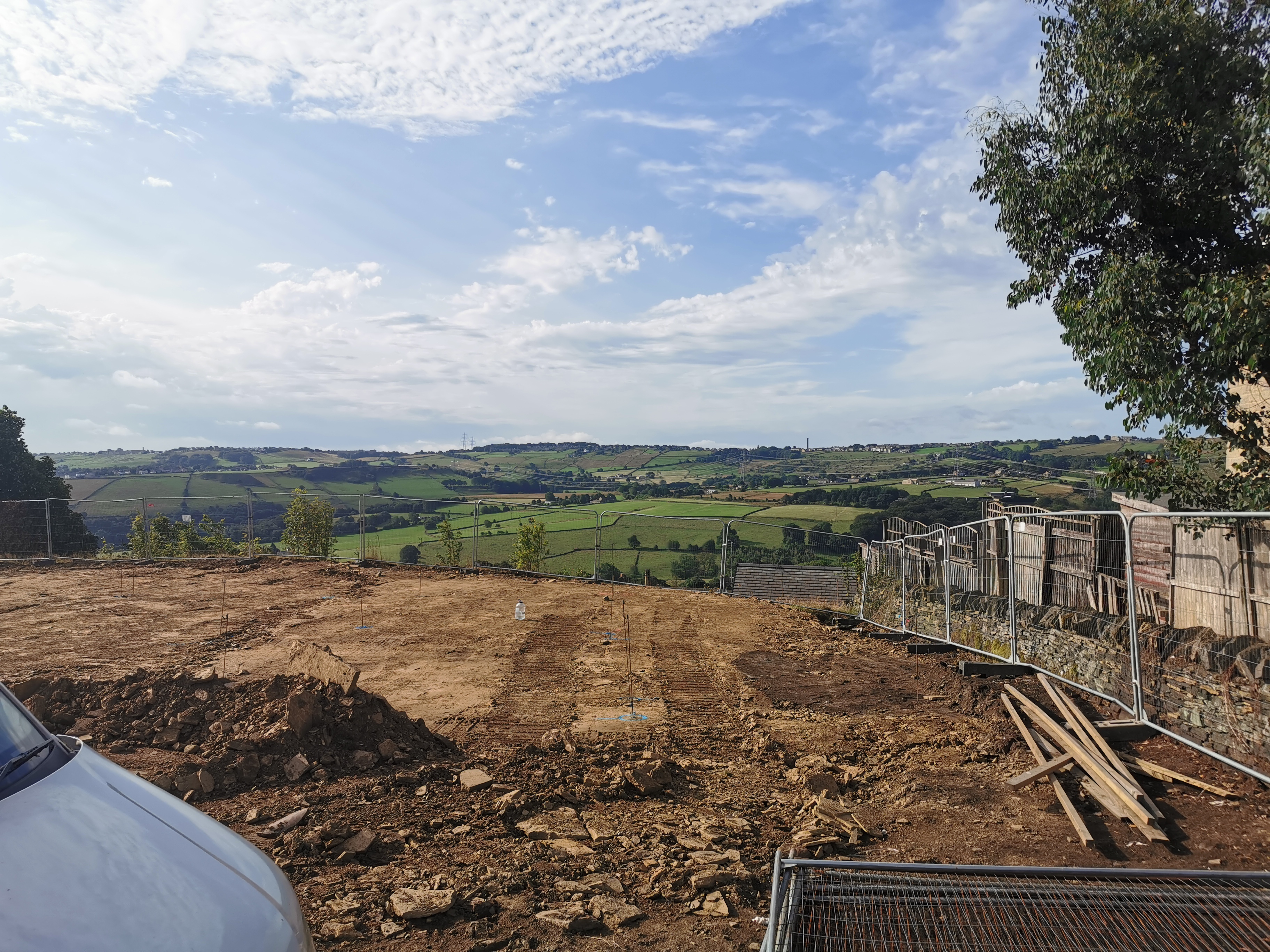

Pre-pile view of the Bradford new build estate site

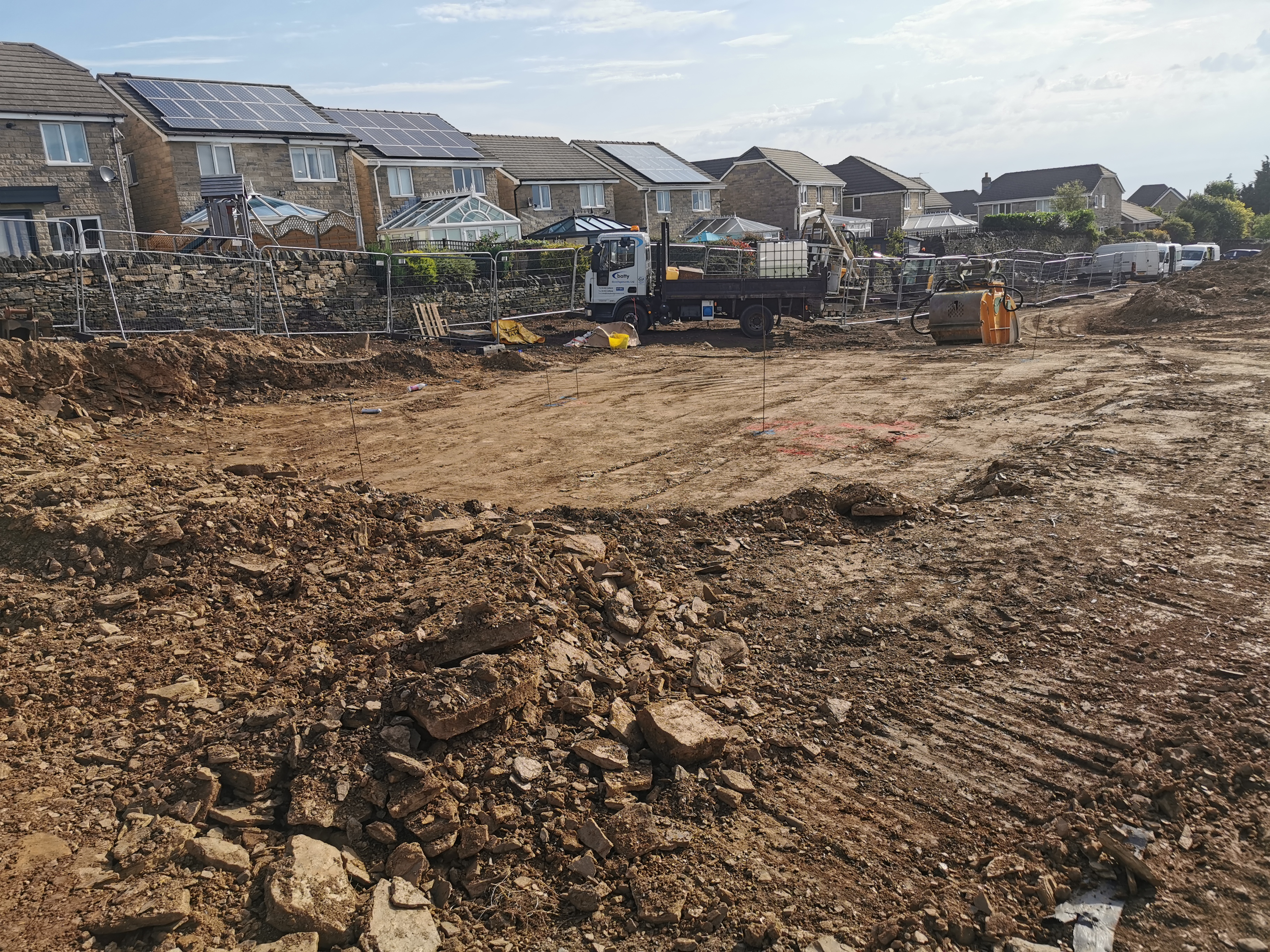

Setting out works for piling and ground beam package in Bradford

2. Driven Piling Works

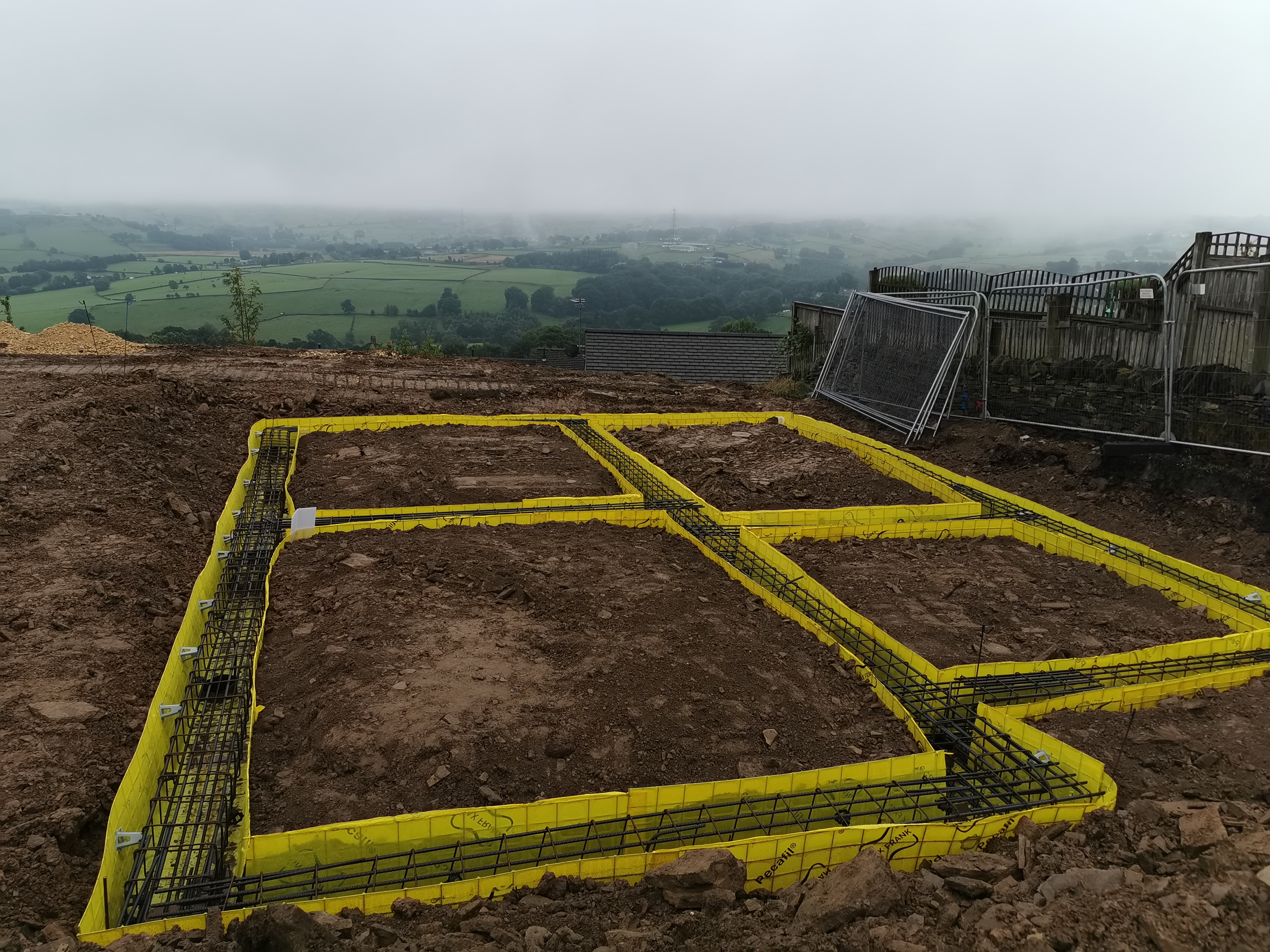

Driven piling and full plot formation progress at the Bradford development

3. RC Ground Beam Formation

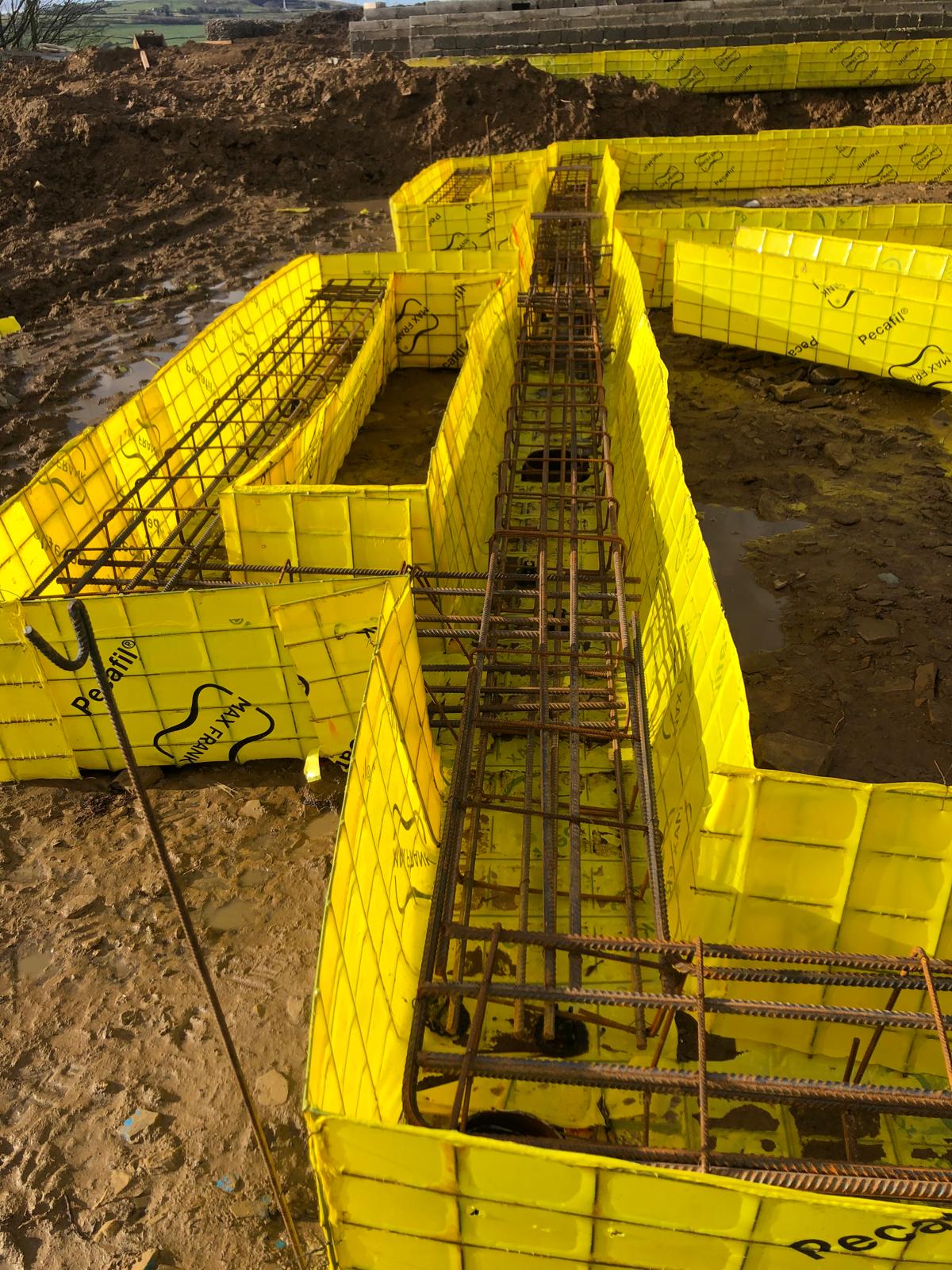

RC ground beam formation detail on Bradford new build site

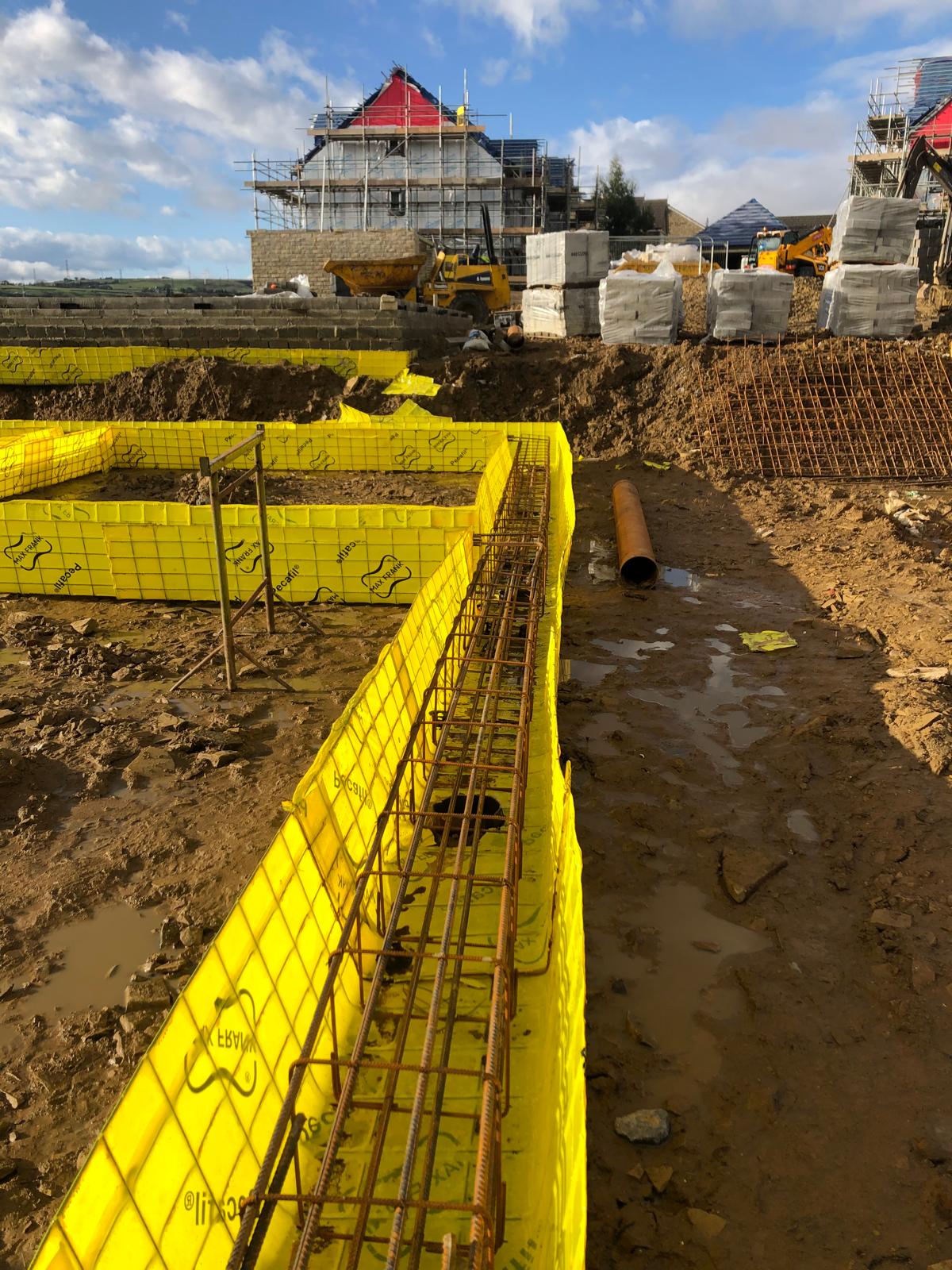

Additional shuttered RC ground beam detail in Bradford

4. Shuttering, Reinforcement & Concrete

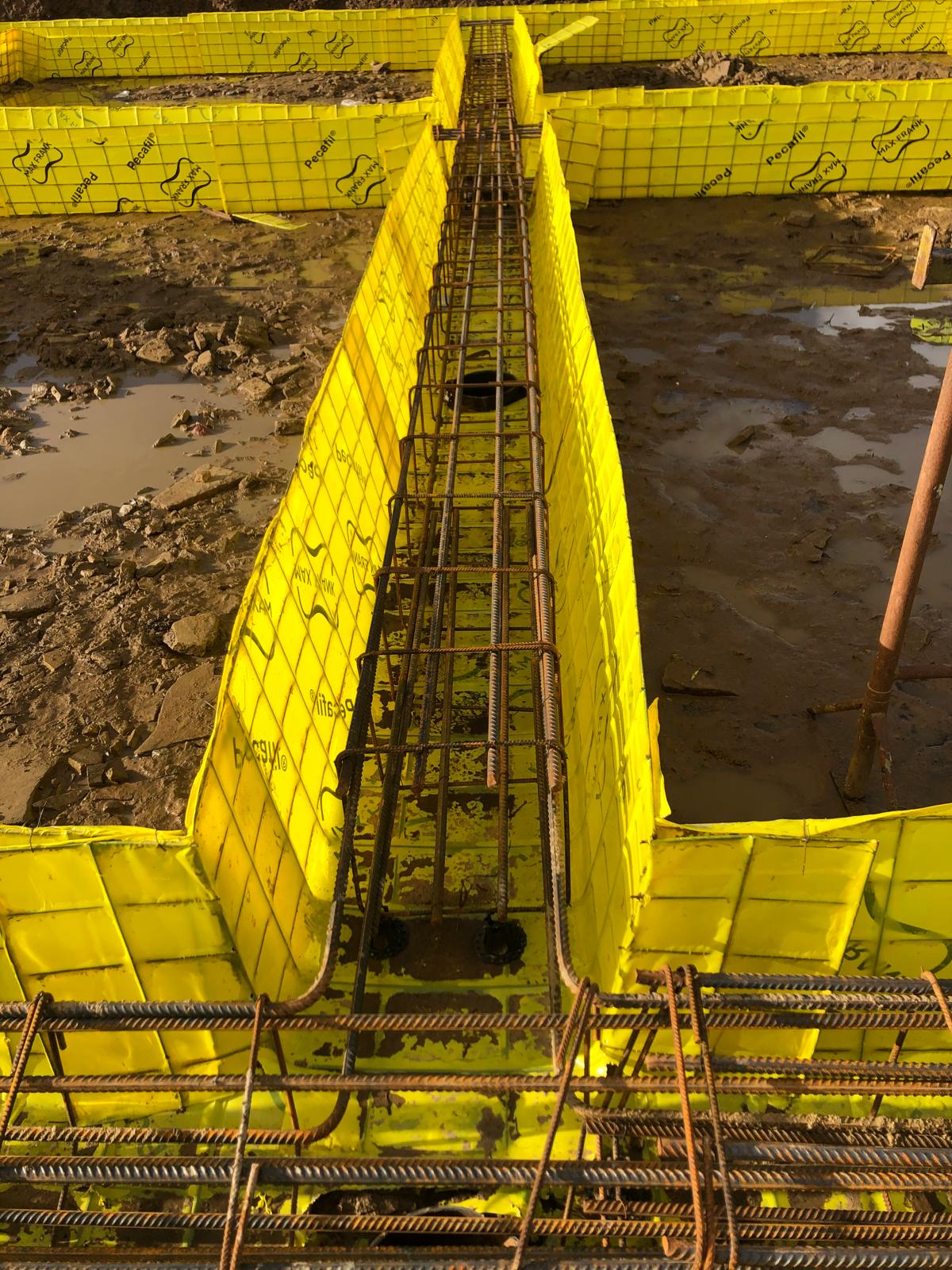

Shuttering and reinforcement stage prior to concrete in Bradford

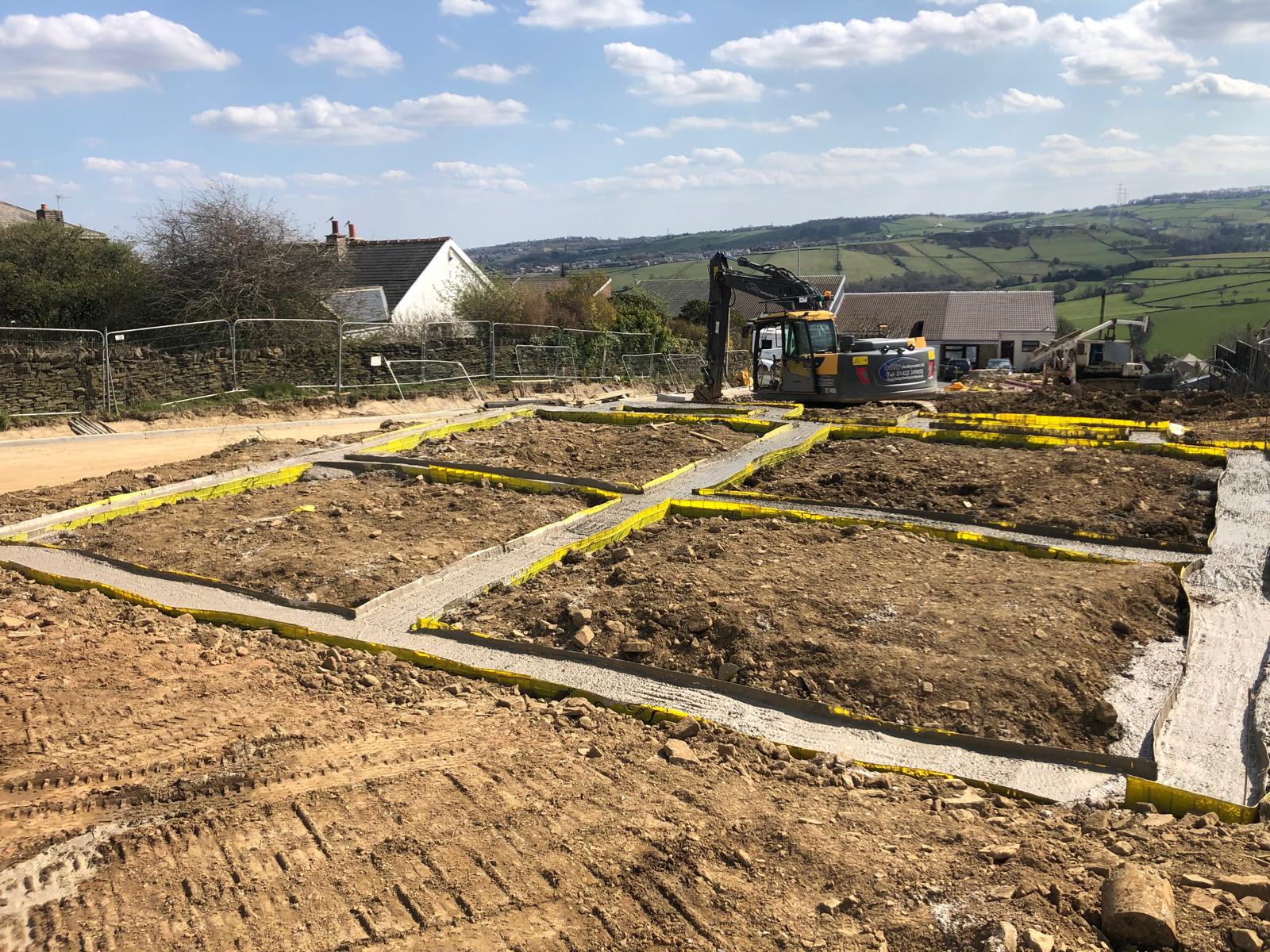

Concreted beam stage showing completed sections in Bradford

5. Completed Foundation Package

Completed foundation package on the Bradford new build estate

Additional Site Image

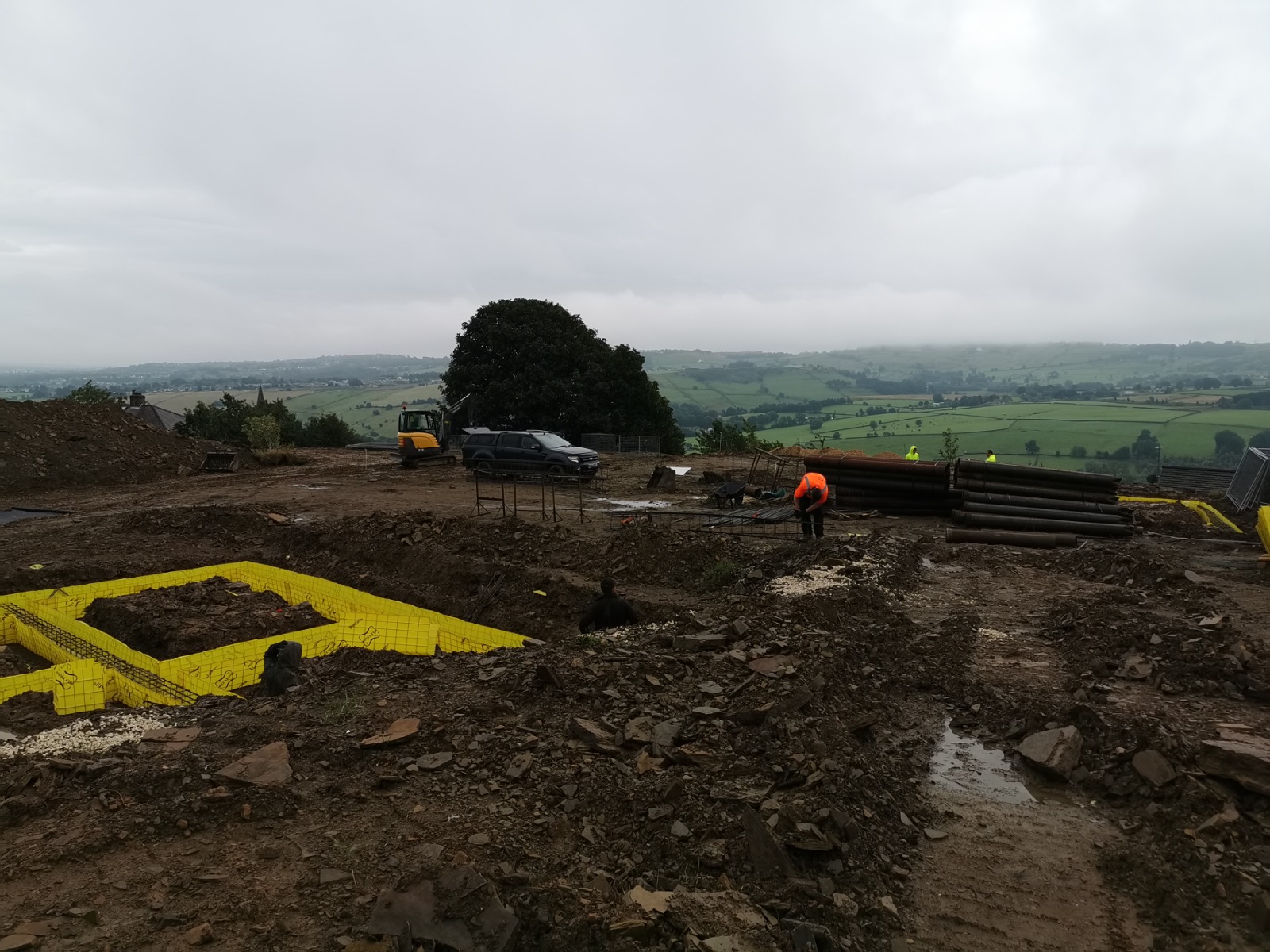

Supporting mid-job site image from Bradford development
